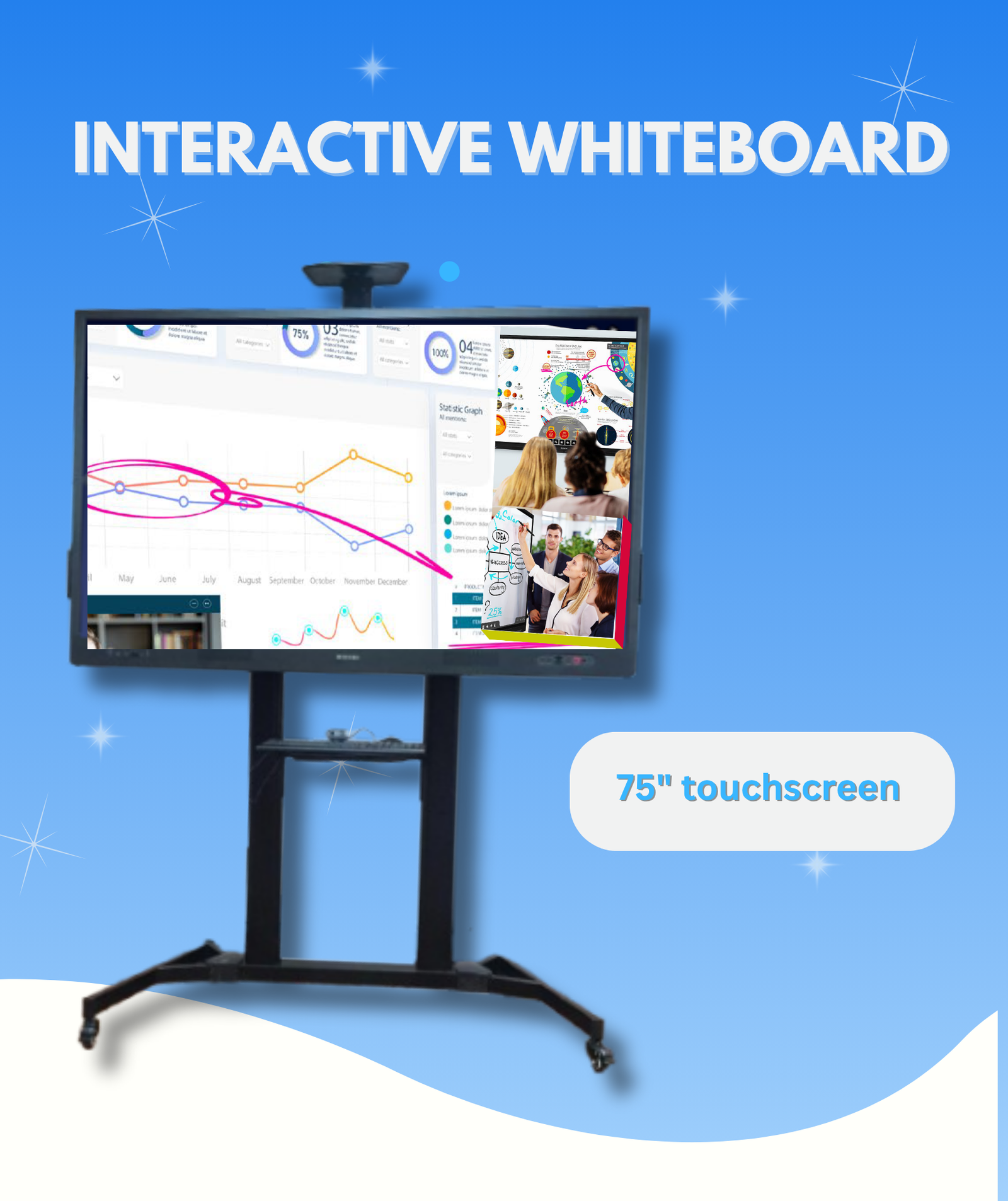

Ricoh InterActive Whiteboard A7510

RICOH Interactive Whiteboard Specifications

Display Specifications

• Screen Sizes: Available in 65-inch, 75-inch, and 86-inch models
• Resolution: Ultra HD
• Display Type: LCD with LED backlight for vivid, crisp visuals
• Brightness: 350 cd/m² (typical) for clear visibility in various lighting conditions
• Touch Technology: Multi-touch (supports up to 20 simultaneous touch points)
• Touch Sensitivity: Accurate and responsive to pen, finger, and touch gestures
• Aspect Ratio: 16:9
• Viewing Angle: 178° horizontal and vertical for wide-angle viewing

Connectivity

Wireless Options:

• Wi-Fi (IEEE 802.11a/b/g/n/ac) for seamless network connectivity
• Bluetooth 4.0 for quick device pairing
• NFC (Near Field Communication) for instant authentication and data sharing

Wired Connectivity:

• HDMI (2 ports) for versatile video input
• USB Type-A (2 ports) for peripheral connectivity
• USB Type-B (for touch interface)
• Ethernet (LAN) port for stable wired networking
• VGA (1 port) for legacy device support
• Audio In/Out (3.5mm) for external audio connections

Screen Mirroring Compatibility:

• AirPlay (iOS devices)
• Miracast (Android/Windows devices)
• Chromecast support for flexible screen sharing

Cloud Storage Integration:

• Google Drive, Microsoft OneDrive, Dropbox, Box for efficient file access and sharing

Interactive Features

• Multi-User Collaboration: Supports up to 20 simultaneous touch points
• Digital Pen and Annotation: Use digital pens for varied colors and thicknesses
• Real-Time Annotation: Draw, highlight, and write directly on the screen for dynamic presentations
• Multi-Page Whiteboard: Capture multiple pages of notes, drawings, and save or export as needed

Audio and Video

• Built-in stereo speakers (10W + 10W) for clear audio
• Integrated microphone for video conferencing
• Optional integrated 1080p camera for enhanced video communication

Software and Application Support

• Pre-installed RICOH interactive software for collaboration, whiteboarding, and document sharing
• Compatible with popular business tools like Microsoft Office and Google Workspace
• Integrates smoothly with cloud-based tools for collaborative work
• Android-based operating system for seamless operation and device integration

Mounting and Installation

• Wall-mount or optional stand for flexible placement
• VESA Mount Compatible (600 x 400mm) for secure installation
• Plug-and-play setup requiring minimal configuration

Energy Efficiency

• Power Consumption: On (150W), Standby (less than 0.5W)
• Power Supply: AC 100-240V, 50/60Hz
• Energy Star Certified for eco-friendly operation

Security Features

• Optional user authentication with NFC or PIN
• Secure communication protocols for data safety
• Password-protected administrative settings for controlled access

Dimensions and Weight

• 65″ Model: 1481 x 884 x 80 mm (58.4 x 34.8 x 3.1 inches) — 35 kg (77 lbs)
• 75″ Model: 1690 x 991 x 80 mm (66.5 x 39.0 x 3.1 inches) — 50 kg (110 lbs)
• 86″ Model: 1927 x 1120 x 80 mm (75.9 x 44.1 x 3.1 inches) — 65 kg (143 lbs)

Optional Accessories

• Adjustable mobile stand for versatile positioning
• High-definition camera and microphone kit for enhanced video conferencing
• Additional digital pens for increased collaboration

The RICOH Interactive Whiteboard delivers an exceptional, feature-rich experience for modern workspaces and educational environments. With its advanced connectivity and interactive features, it enables dynamic collaboration, streamlining communication for teams and educators alike.
